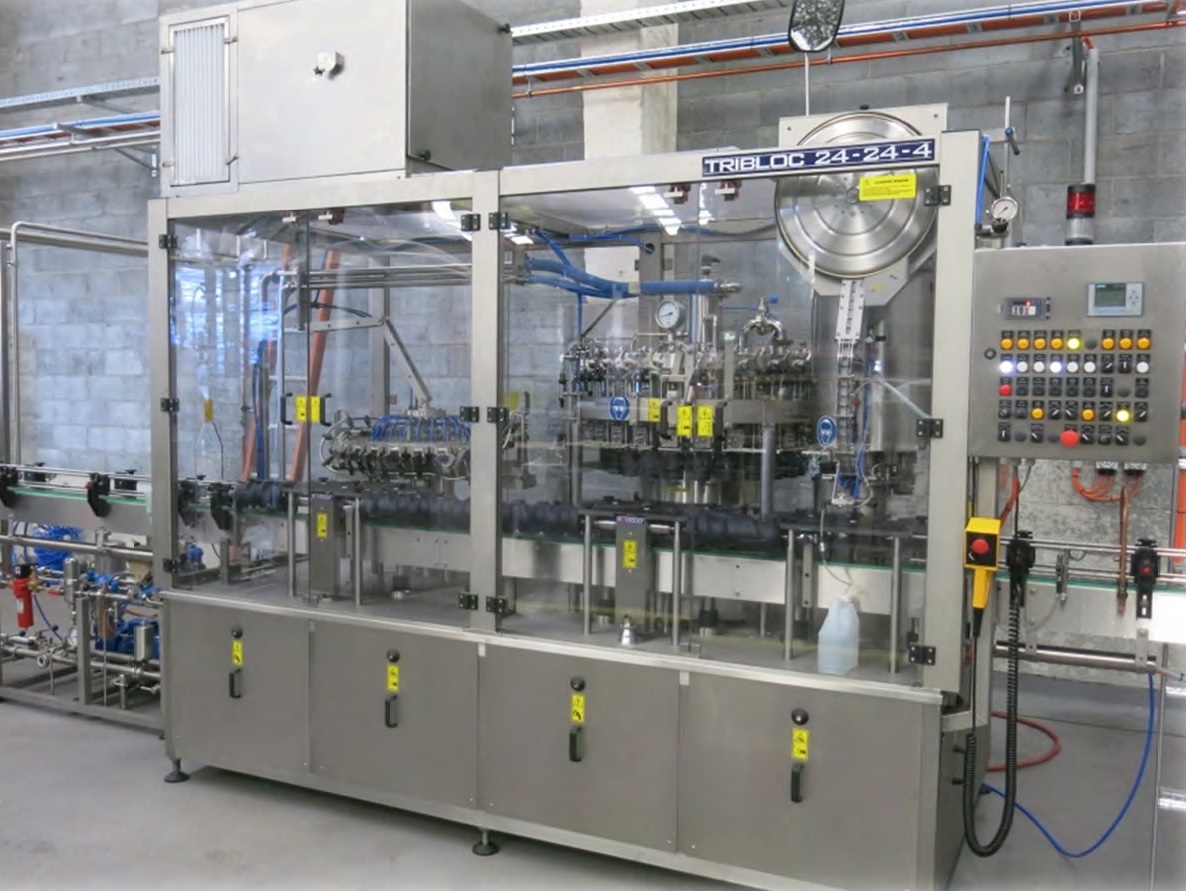

TRIBLOC/MONOBLOC with counterpressure filling system for beer



Serie 480 (up to 3 000 BPH)

Dimensions

Length

Width

Height

2 650 mm / 8.7 ft

1 250 mm / 4.1 ft

2 400 mm / 7.7 ft



Size

max. capacity [BPH]

max. bottle diameter [mm]

Notes

330 ml / 12 oz

500 ml

22 oz

6-6-1

1500

1200

900

90

expandable to 12-12-1

6-8-1

2000

1500

1200

90

expandable to 12-16-1

8-8-1

2000

1500

1200

90



12-12-1

3000

2200

1800

90



12-16-1

3000

3000

2500

85







Serie 720 (up to 8 000 BPH)

Dimensions

Length

Width

Height

3 050 mm / 10 ft

1 450 mm / 4.8 ft

2 600 mm / 8.6 ft



Size

max. capacity [BPH]

max. bottle diameter [mm]

Notes

330 ml / 12 oz

500 ml

22 oz

18-18-4

5000

3600

3000

90

6-head crowner possibility

24-24-4

7000

5000

4000

85

6-head crowner possibility

24-30-6

8000

6000

70

can be split for larger bottle





Serie 960 (up to 15 000 BPH)

Dimensions

Length

Width

Height

3 400 mm / 11.2 ft

1 650 mm / 5.4 ft

2 600 mm / 8.6 ft



Size

max. capacity [BPH]

max. bottle diameter [mm]

Notes

330 ml / 12 oz

500 ml

22 oz

24-24-6

8000

7000

5000

90



28-32-8

10000

9000

7000

85



32-32-8

12000

9000

7000

80



32-36-8

15000

10000

8000

77



32-40-8

15000

11000

70

can be split for larger bottle

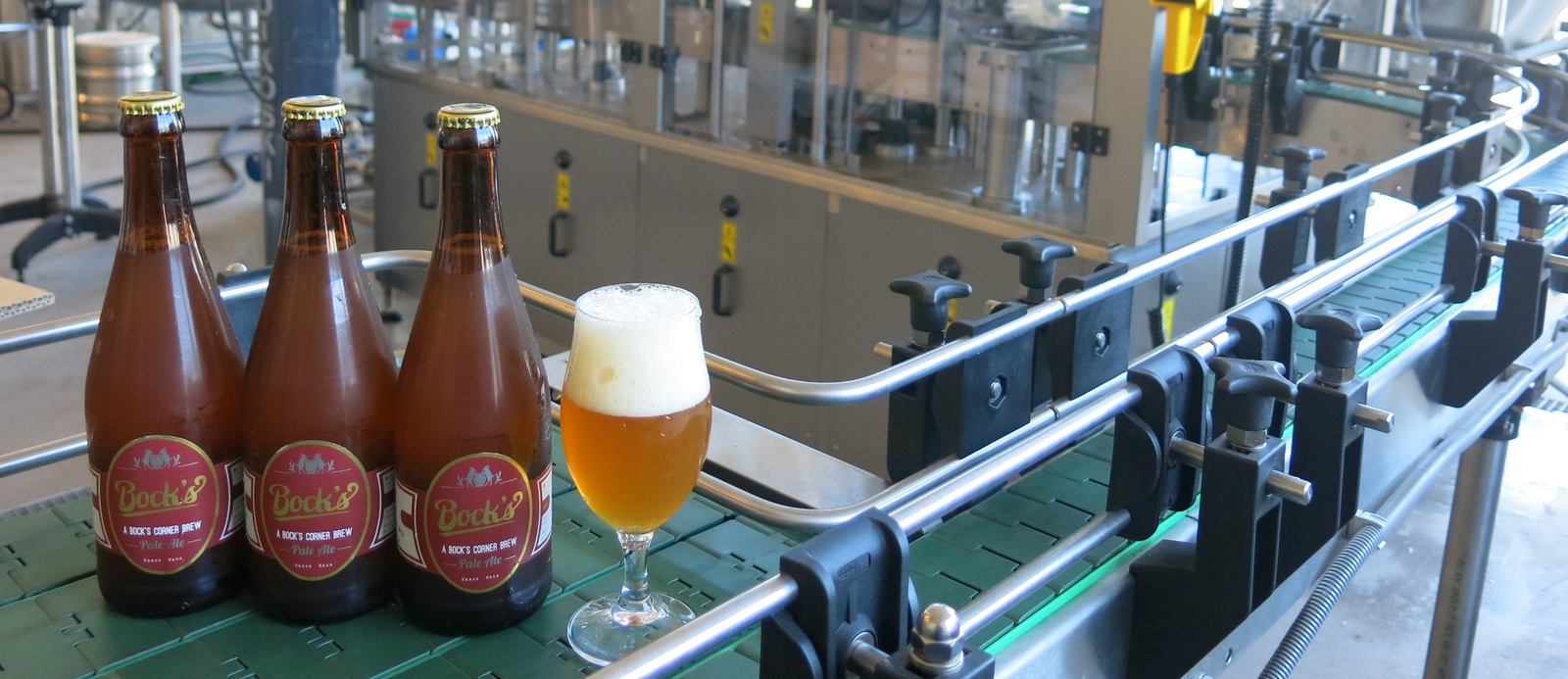

Our Benefits:IMG_2463.JPG

  • all machines can be made as MONOBLOC (Filler + Crowner)
  • simple, reliable and field tested solution
  • compact dimensions
  • variable manufacture to customer's specification
  • completesolution of bottling lines (TRIBLOC, conveyors, labeler,...)

Rinser

2-stage rinsing (desinfection + filtrated water)
safety ball clutch with microswitch

Filler

counterpressure filler
proportional valve for CO2 regulation
filler bowl level electronic regulation
CIP cups
central safety ball clutch
with microswitch
single / double pre-evacuation

Crowner

crown corks 26 mm
automatic checking device of missing crowns
on the bottle
fully automatic distributor of crowns

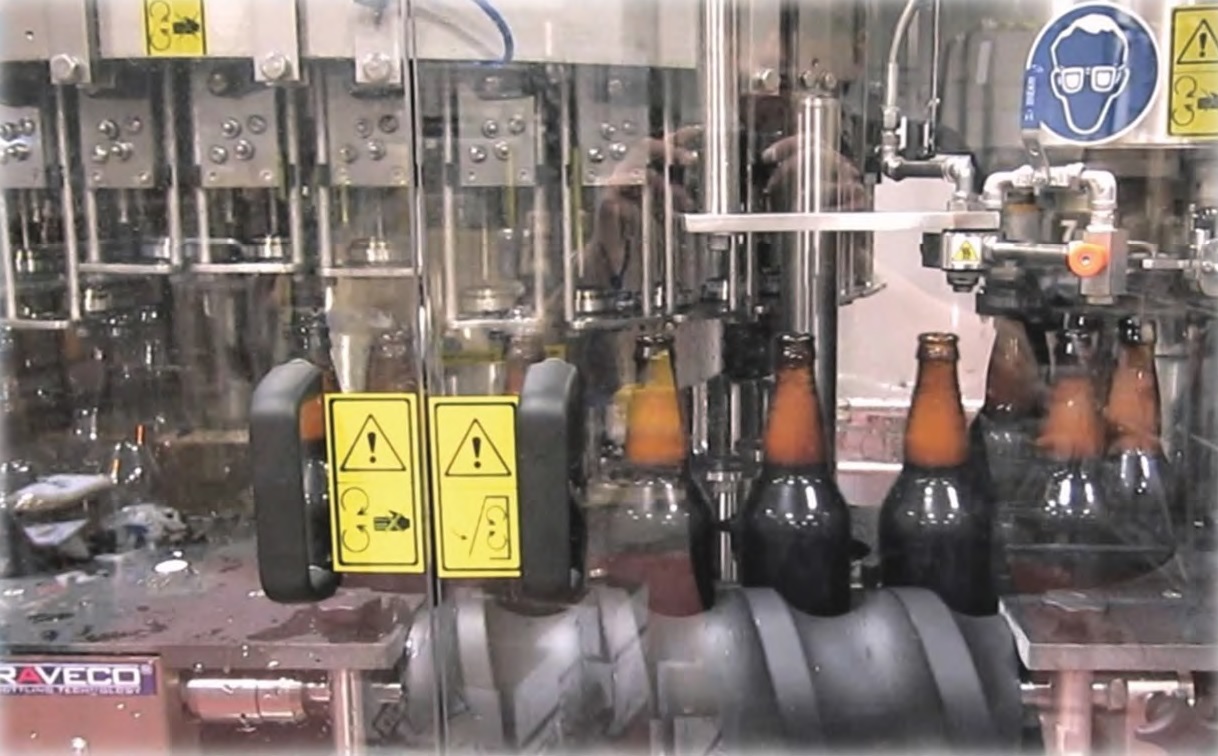

1 Rinser.png

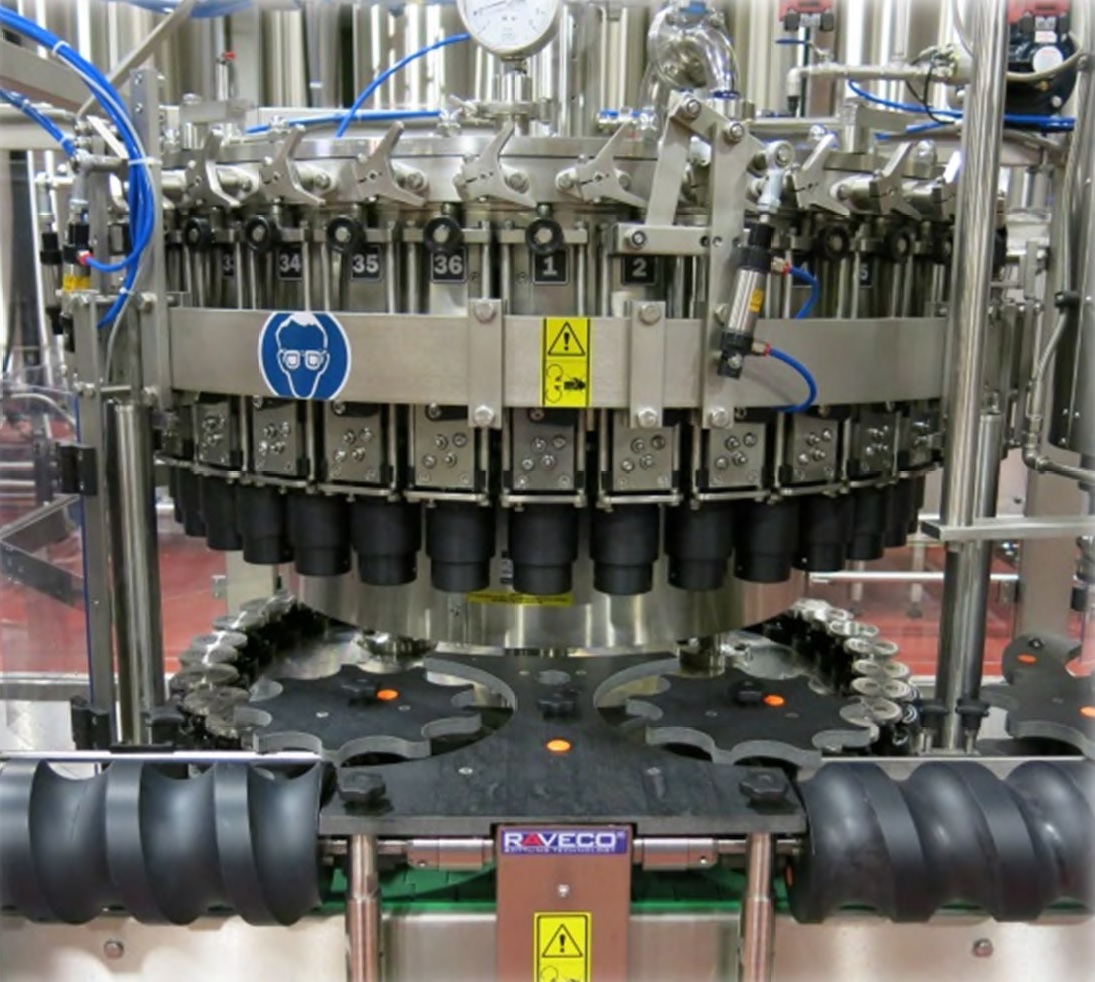

2 fillter.jpg rotary crowner.jpg
Rotarycrowner
single head crowner.jpg
Single headcrowner
Bulk Hoppper for Crowns.jpg
Bulk Hoppper for Crowns
Top Guarding + HEPA Filtration unit.jpg
Top Guarding + HEPA Filtration unit
Media Valve Cluster + Beer pump.jpg
Media Valve Cluster + Beer pump
Beer Jetting system.jpg
Media Valve Cluster + Beer pump
Layout of small Bottling line.jpg
Layout of small Bottling line
